Land Robotic Survey Equipment Hitarget One Man Total Station High Position

Brand Name : Hi-Target

Model Number : HTS-420L8

Place of Origin : China

MOQ : 1 set

Price : ＄1050 ,00

Payment Terms : T/T, L/C

Delivery Time : 30 work day

Product Name : Robotic Total Station HTS-420L8

Customized support : OEM, ODM

Application : Land Surveying

Weight(including batteries) : 5.5kg

Magnification : 30X

waterproof : IP55

Accuracy : 2"

Operation language : ENGLISH

Contact Now

Land Surveying Instrument Total Station Hi-Target HTS-420L8 With High Position 1000m And 2'' Accuracy

Product Description

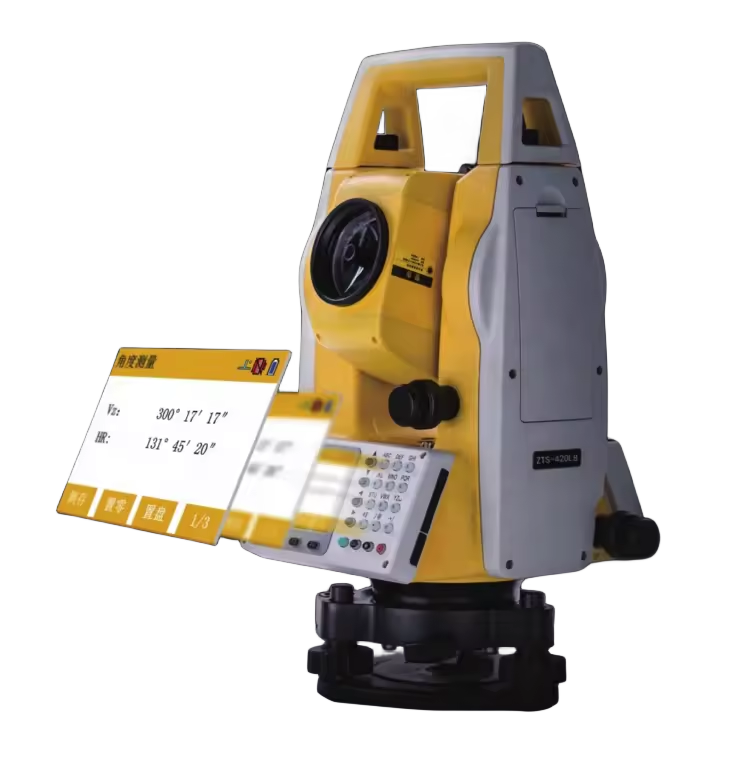

New body design
Smaller and stronger housing with precision shaft system and compensator to ensure stable and reliable goniometry. Goniometric accuracy:士2``
IP66 waterproof and dustproof, suitable for all kinds of harsh environments.
Land Robotic Survey Equipment Hitarget One Man Total Station High Position
Land Robotic Survey Equipment Hitarget One Man Total Station High Position
Video Description
Hi-target ZTS-420L8 total station Surveying instrument with Advanced Performance and 2'' accuracy Hi-target survey total station
00:01
00:31
Land Robotic Survey Equipment Hitarget One Man Total Station High Position
Specification
Model
ZTS-420L8
Angle Measurement
Angle measuring principle
Absolute Encoding
Minimum Readout
1″/5″/10″(0.3mgon/1.5mgon/3mgon) optional
Accuracy¹
2"
Distance Measurement (Prism mode)
Range³
Single Prism: 3000m (9,842ft.) Three Prisms: 6000m (19,685ft.) Reflective Sheet: 800m (2,624 ft.)
Accuracy
3mm＋2ppm
Measuring Time
Repeat/Tracking: 1.5s/1s/0.3s
Distance measurement (Reflectorless)
Range
Range: 400m
Accuracy
3mm+2ppm
Measurement Time
1.5s
Telescope
Magnification
30x
Field of View
1°30' (2.7m at 100m)
Minimum Focusing Distance
1.2m
Reticle
Illuminated
Compensator
System
Dual-axis (optional)
Working Range
±3′
Accuracy *1
1"
Communication
Internal Data Memory
Approx. 20,000 Points
Interface
Standard RS232, SD card4, USB pen drive
Wireless Communication
Bluetooth
Data Format
ASCII
Operation
Operation system
Real-time Operating System
Display
High resolution backlight colourful display
Keyboard
2 sides Alphanumeric backlit crystal keyboard
Power Supply
Battery Type
Rechargeable Li-ion battery
Voltage/ Capacity
ZBA-400: 7.4V (DC) / 3000mAh
Operating Time With ZBA-400
Optimal 16 hours (Continuous angle measurement every 30 seconds) / 10 hours(typical)
Measuring Times
Approx.12000 times
Plummet
Type
Laser point, 4 brightness levels adjustment / Optical plummet (optional)
Centering Accuracy
1 mm at 1.5m instrument height
Environmental
Operating Temperature
-20℃ ~+50℃( -4℉ to +122℉)
Storage Temperature
-40℃ ~+70℃(-40℉ to + 158℉)
Dust&water proof (IEC60529 Standard)
IP55
