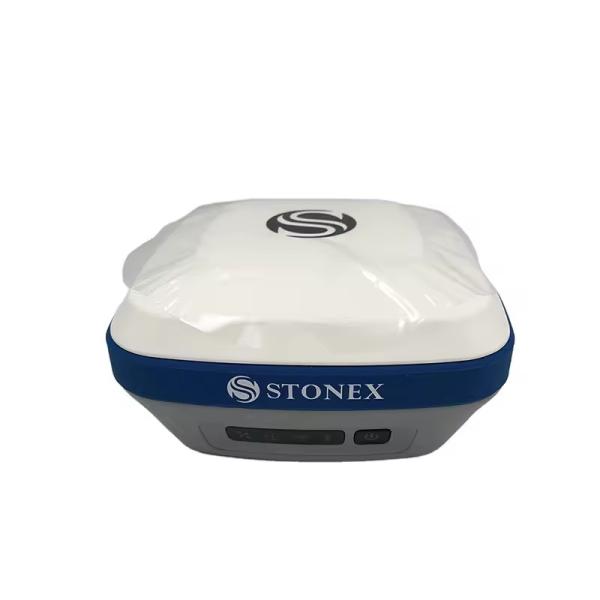

International Version STONEX S700A/S3II Gps Surveying Instruments GNSS Rover And Base Station RTK

Name: International Version STONEX S700AS3II Gps Surveying Instruments GNSS Rover And Base Station RTK
Brand: STONEX
Price: 3 USD

China International Version STONEX S700A/S3II Gps Surveying Instruments GNSS Rover And Base Station RTK factory

Brand Name : STONEX

Model Number : S700A/S3II

Place of Origin : China

MOQ : 1 piece

Price : $3,100.00

Payment Terms : L/C, T/T

Supply Ability : 1 ~ 30 day

Delivery Time : 30 work day

Product name : RTK receiver STONEX S700A/S3II

Customized support : OEM

Channel : 800 Channels

Transmitting power : 0.5W, 1W, 2W adjustable

Transmitting speed : 9.6Kbps, 19.2Kbps

Gps : L1 ,L2, L5

Working range : 5km typical, 8~10km optimal

BDS : B1, B2, B3

Contact Now

International Version STONEX S700A/S3II Gps Surveying Instruments GNSS Rover And Base Station RTK

GNSS RTK System Base And Rover Station Stonex S700A/S3II GNSS GPS Price

Model	S3ll
Satellite system
Satellite system	BeiDou/GPS/GLONASS/Galileo,ATLAS
Tracking
channel	800channels
GPS	L1 ,L2, L5
GLONASS	G1 C/P, G2C, G2P, G3
BDS	B1, B2, B3
Galileo	E1, E5a, E5b
Aided positioning	IRNSS L5
	SBAS L1, L5
	QZSS L1 C/A, L1C, L2C, L5, L6
L-BAND	TerraStar(optional)
L-BAND	RTK ASSIST(optional)
Performace Index
Static H Accuracy	±(2.5mm+1ppm)RMS
Static V Accuracy	±(5mm+1ppm)RMS
RTK measure H Accuracy	±(8mm+1ppm)RMS
RTK measure V Accuracy	±(15mm+1ppm)RMS
ATLASposition*	H:5cm
ATLASposition*	V:10cm
Initialization time	<10s
Initialization reliability	>99.99%
Data Output Rate	1Hz-20Hz
Static Storage and Data Output
Storage format	Dat/Rinex
Storage memory	Standard 16G
Storage way	Two formats of data can be stored at the same time
Download way	Suooprt USBdownloada &Web download
Export format	NMEA0183,PJKPlanar coordinates, binary codes
Export way	blue tooth/WIFI/RS 232/radio/network

blue tooth	2.1/4.1 LE dual Modular
WiFi	802.11 b/g/n
voice	Support voice broadcasting
Communication protocol	TrimTalk / TrimMask 3;PCC EOT;Geotalk;Hi-target
Radio	Built-in transceiver:0.5W/1W(can adjust)
	external launch:5W/35W(can adjust)
	working frequency:410-470MHz
I/O port	1 LEMO data port,USB data download,U disk upgrade function
	1 LEMO port,External Output Input,External power supply
	1 LEMO power port;1 TNC radio port
Difference scheme	RTCM2.X,RTCM3.X,CMR,CMR+,ROX
GNSS Antenna characteristics
GNSSAntenna characteristics	Integrated built-in antenna with zero phase center difference
environment
working temperature	-30ºC~+70ºC
Storage temperature	-40ºC~+80ºC
Waterproof and dust-proof	IP67
Fall prevention	Resistance to 2 m drop with pole (hard ground with concrete)
Water proof	Immersion 1 m underwater (30 minutes)
humidity	100% condensation resistance
Physical and power characteristics
Using time	>10 hours
size	146mm×146mm× 76mm
weight	1.2kg
battery	7.2V 6800mAh
key	1 key

International Version STONEX S700A/S3II Gps Surveying Instruments GNSS Rover And Base Station RTK
